UV Pipe Relining (Cured in Place Pipe) is the modern no-dig evolution of traditional pipe relining services. Where conventional methods use heat with water and steam, UV cured pipe repair utilises ultraviolet light to cure the resin inside the liner.
Efficient, Effective, and Reliable combined with Increased Productivity.
Minimise site establishment and prep time with our prepacked liners which cure in under 15 minutes. Inspect and Repair pipelines immediately – no double site visits.
Product Information:
Further to the development of UV Cure has come UV LED Cure, it is the only cure method on the market that has the capability to cure both standard UV glass reinforced liners and felt liners impregnated with UV LED resin. This lightweight and portable curing equipment means access to small working areas is achievable and less power is required than with traditional systems. UV LED is capable of curing liners both horizontally and vertically.
Includes:
Optional:
Product Information:

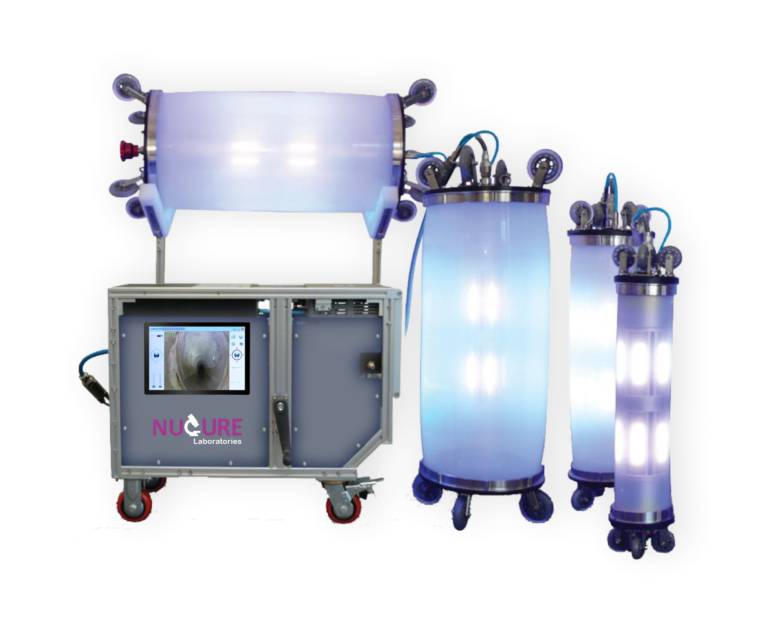

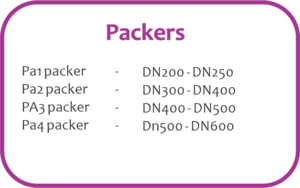

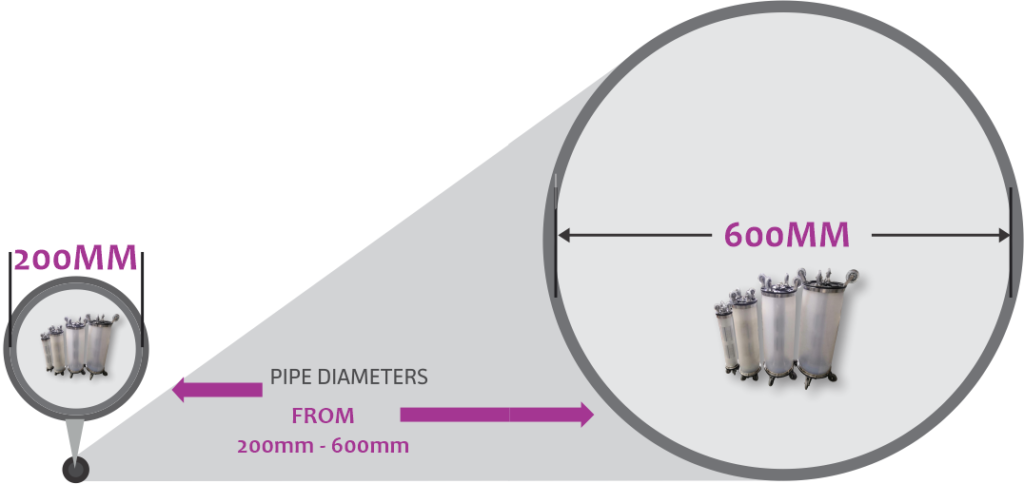

For the repair of point defects in drainage pipes. For Specific pipe diameters, the relevant packers are selected to accurately repair the damaged points. It’s composed of a main control system and 4 packers. Can repair a damaged point in 8 minutes dependent on resin type.
Includes:
Optional:
Product Information:

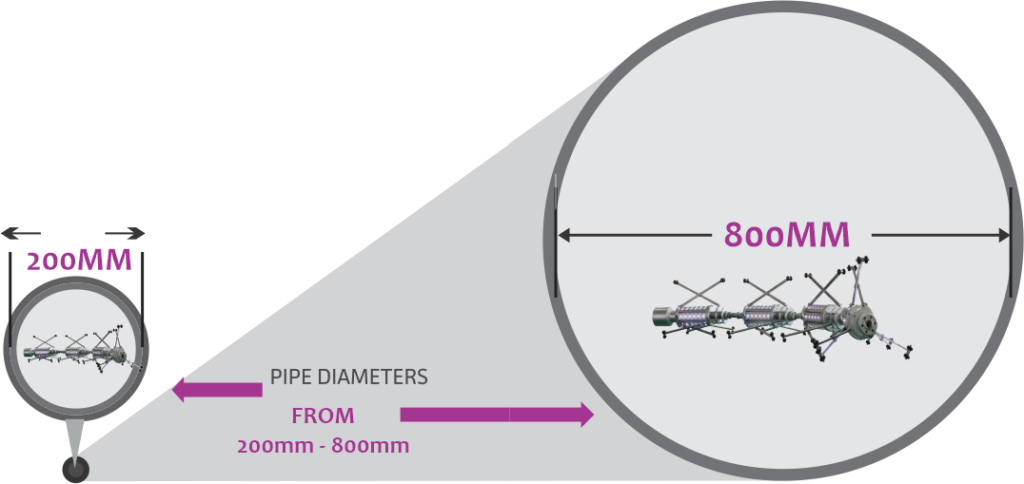

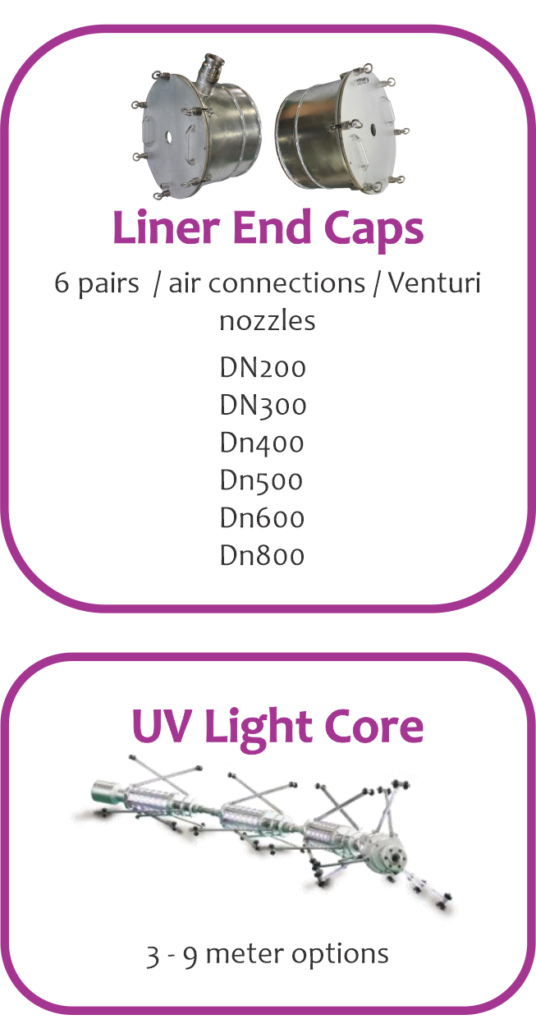

The N150 CIPP UV Light Curing Core is composed of a modular, future proof controller, a 150m cable, a UV light core holder, a HD lens and ancillary tools. Suitable for trenchless repair projects of main line networks with diameters of DN200-DN800. Can be either trailer or vehicle mounted.
Includes:
Optional:
Contact us and we will happily respond
