NU CURE CIPP Systems
Generation 2 Cure in place pipe relining solutions (NUCURE G2) from NU CURE Laboratories, Johannesburg South Africa, and is now available to CIPP and pipeline professionals looking to upskill their teams or start-up an SME.
Nu Cure G2 Liner offers a unique 3D construction, for the quick, repeatable pipe rehabilitation process systems and enable completion of complex laterals, drains and sewers.
100% Glass Liner
A unique 100% glass tube knitted structure comes with a choice of TPU or PVC coating.
Multiple Thickness
Nu Cure G2 Liner is available in 2-Layer and 3-Layer Fibre Complexes.
Reduced Wall Thickness
Nu Cure G2 Liner features virtually fold free, high performing technical textiles and return lower T-thickness values as well as reduced resin uptake (30% less than traditional felt lining systems). Nu Cure G2 Liner provides a stable wall thickness, even with multiple dimension changes.
Seamless Construction
Our seamless liner is designed and developed for efficient and reliable CIPP rehabilitation and makes inversion lining possible from 0.2 bar.
50% Diameter Change & 90 Degree Bends
NUCURE G2 Liner is an extremely flexible product range that offers as much as 50% diameter change. NUCURE G2 Liner can navigate multiple 90-degree bends, making it the perfect solution for the repair of defective pipes with numerous turns, of up to 90°.
High Tensile Strength
Our high performing polymer matrixes are reinforced, giving excellent mechanical values.
Excellent Flexural Modulus
High strength lining technology and process delivering reliable results
Curing
Nu Cure G2 Liner is developed to cure in multiple conditions, allowing for, High temperature, Ambient, steam and UV curing.
2 Layer Fibre Complex

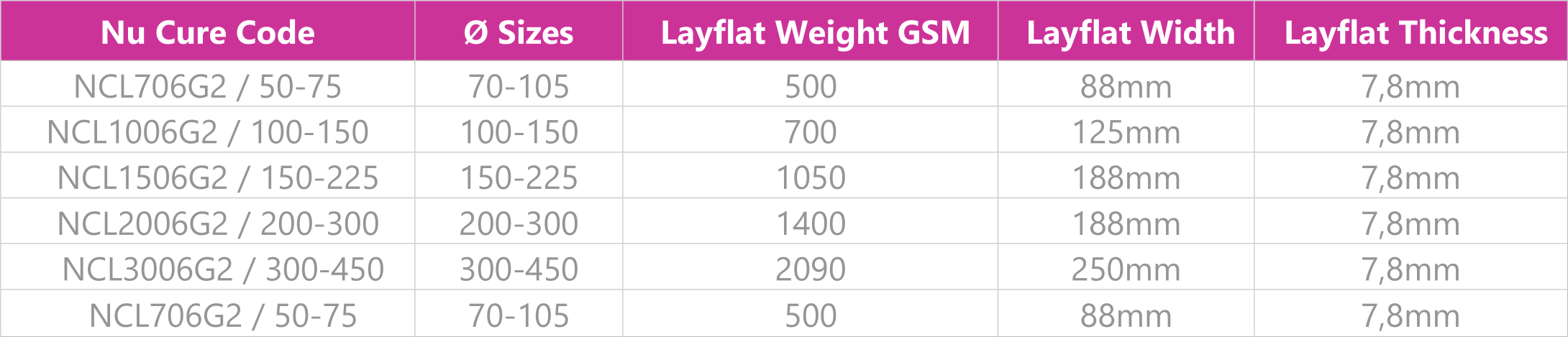

3 Layer Fibre Complex

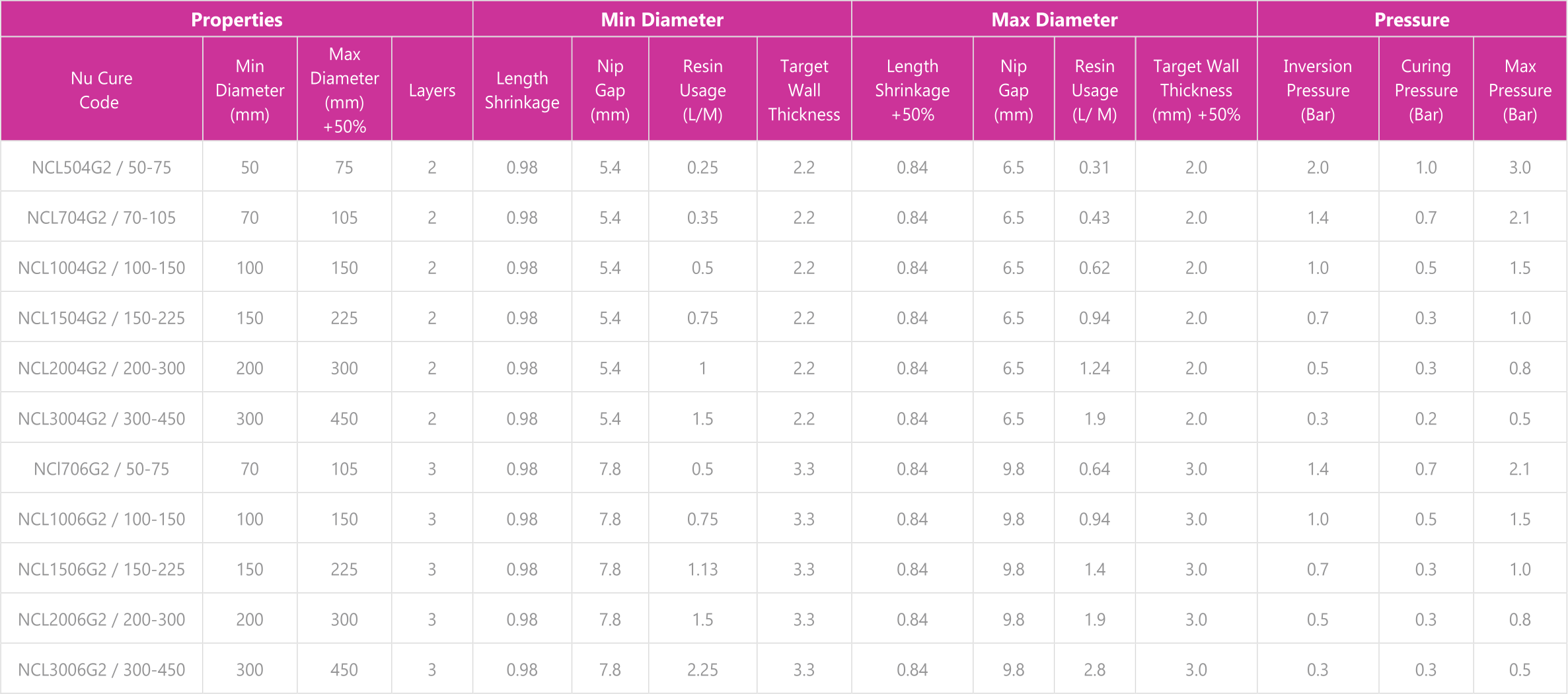

NUCURE G2 is tested using BS EN 1228 standards. Testing of DN 100-150 , Adapted Polymer , installation pressure 0,5 bar and post cure profile with hot water cure at 85TC.
Contact us and we will happily respond
